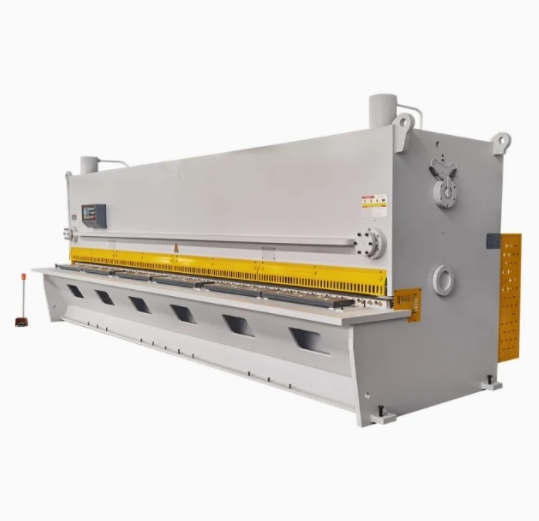

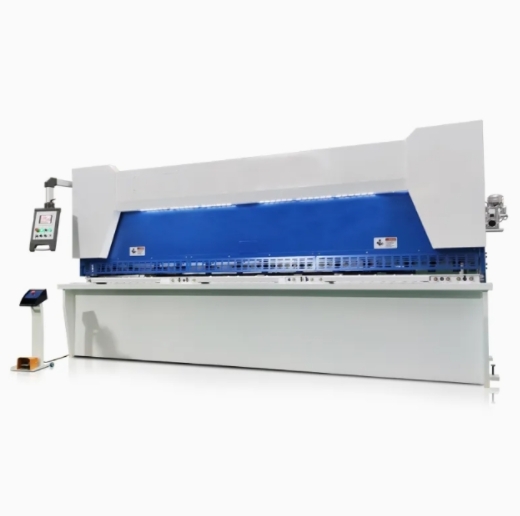

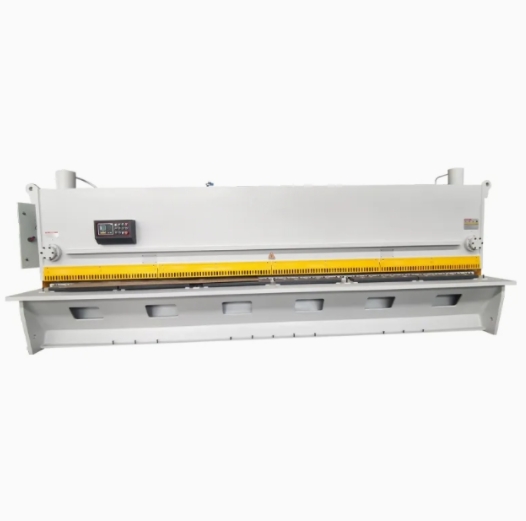

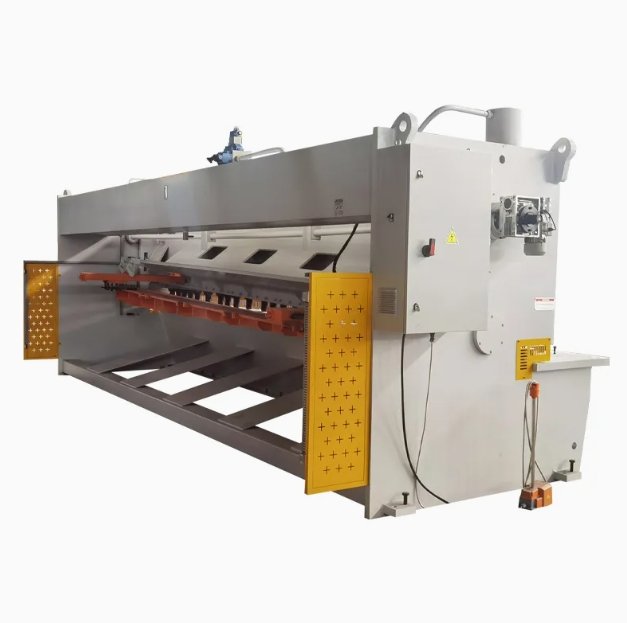

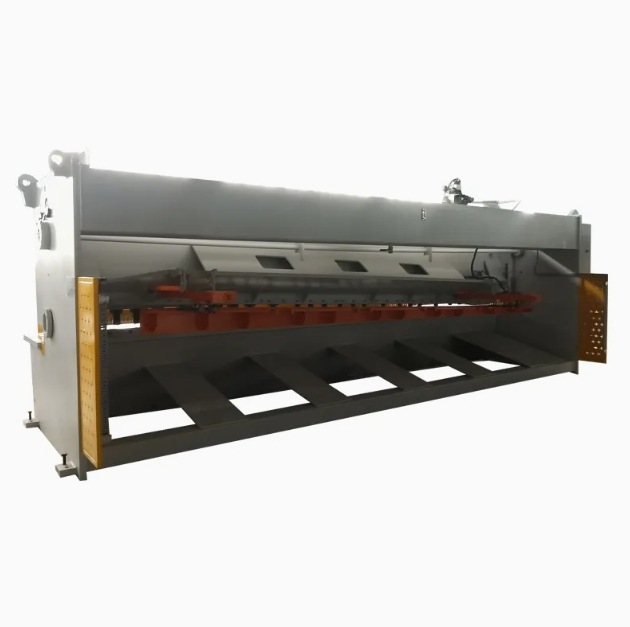

High-precision QC11Y/K series guillotine shearing machine engineered for accurate cutting of steel and various metal alloys in demanding industrial environments.
Features a robust, stress-relieved welded steel frame ensuring high rigidity and sustained cutting accuracy.
Utilizes a precise guillotine cutting action with three-roller guide structure for superior shear quality.
Equipped with durable four-edge cutting blades made from high-quality alloy steel (e.g., 6CrW2Si) for extended life.
Includes a motorized backgauge with ball screw drive for accurate, repeatable positioning, often with digital display.
Offers flexible NC/CNC control options (e.g., E21S, CT8, DAC360T) for automated operation and programming.
Features a quick blade clearance adjustment mechanism to optimize cuts for different material types and thicknesses.

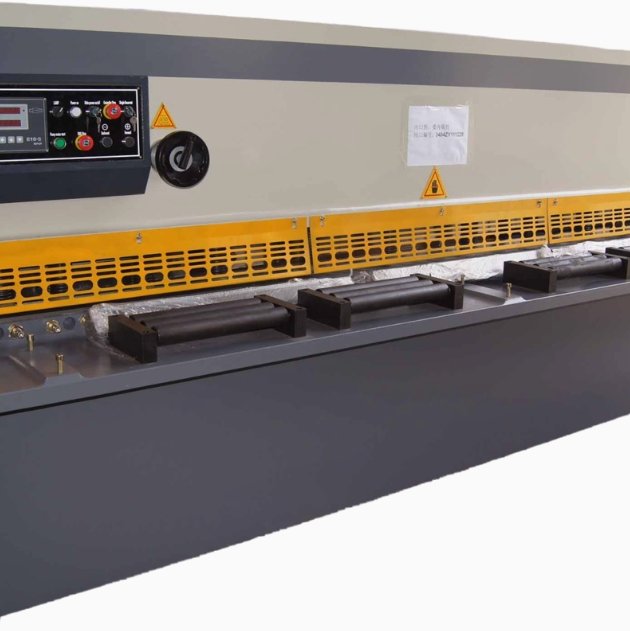

Worktable incorporates rolling balls to facilitate material feeding and prevent workpiece scratching.
Machine Type: Hydraulic Guillotine Shear (QC11Y/K Series)
Controller Options: NC/CNC Systems Available (e.g., E21S, CT8, DAC360T)
Max Cutting Thickness Range: 4mm up to 40mm (Model Dependent)
Max Cutting Width Range: 2500mm up to 6000mm+ (Model Dependent)
Backgauge System: Motorized Ball Screw Drive with Digital Control
Blade Material: High-Quality Alloy Steel (e.g., 6CrW2Si) with 4 Cutting Edges
